LEA International

LEA International is the premier manufacturer of commercial, industrial and residential suppression equipment. LEA International continues today as an innovative leader in the design and engineering of MOV based series filters and parallel surge protection devices used in new construction, broadcast, military and alternative power markets.

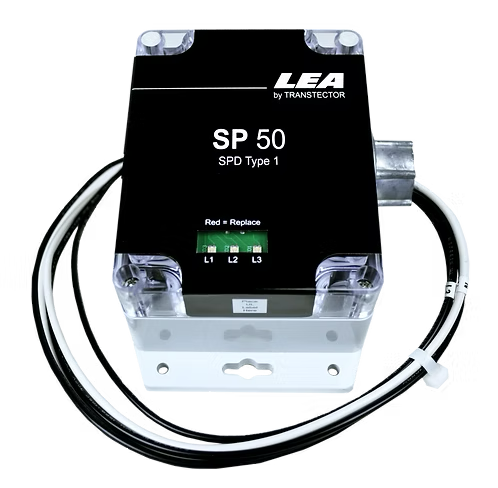

LEA INTERNATIONAL SP50 SERIES

The SP 50 is a cost effective UL 1449 3rd Edition listed surge protection device (SPD). It is designed for installation on panelboards and provides 50kA surge current capacity per phase. Thermally coordinated MOV technology provides robust, reliable protection for sensitive loads.

The SP 50 Series provides reliable AC surge protection in a compact unit. LEA International by Transtector offers a full range of nominal operating voltages from 120 Vac to 600 Vac to address global AC surge protection requirements. Thermally coordinated MOV technology provides robust, reliable, protection for sensitive loads, while the innovative design enables quick installation either upstream or downstream of the main disconnect without additional overcurrent protection.

Features
Models
  • Type 1 Indoor/Outdoor Protector

  • Ul 1449 4th Edition Listed

  • UL 96A (for 20kA models)

  • NEMA 4X

  • Economical AC surge protection

  • LED status indication

  • Available in 120 Vac to 600 Vac configurations

  • No external overcurrent protection (fuses) required

  • Compact design and rugged construction

  • Thermally protected MOV technology

  • Quick installation for indoor and outdoor use

  • SP50-1201P

  • SP50-240SP

  • SP50-2401P

  • SP50-1203Y

  • SP50-4803Y

  • SP50-6003Y

  • SP50-2403D

  • SP50-4803D

LEA INTERNATIONAL SP PLUS

Compact Design Surge Protection Device for Installation on Service and Branch Panels



The SP Plus provides  a robust, non-modular, UL 1440 4th Edition Listed SPD. All mode system protection and integrity for critical applications. A compact design listed to UL 1449 4th Edition with robust surge capacity for long life and easy installation makes this unit ideal for all your surge protection requirements. Up to 200 kA of surge current capacity per phase.

Features
  • Alarm with Disable Switch - audible indication

  • Indicator Lights per Phase - visual indication for protection integrity

  • Dry Contacts - Form C contacts for remote monitoring (NO & NC)

  • Linear Sharing - reduces stress to extend product life

  • Thermally Protected MOV - allows maximum surge capacity, repetitive capability, and performance while maintaining safety requirements

  • All Mode Protection - L-N, L-G, N-G, & L-L

  • 10 year warranty

Options

Alarm disable switch

Flush mount kit

Models

SP100
100kA per Phase: L-L 50kA, L-N 50kA, L-G 50kA, N-G 50kA



  • SP100-120/240-SP,  SP100-120/240-SP-1

  • SP100-120/208-3Y,  SP100-120/208-3Y-1

  • SP100-277/480-3Y,  SP100-277/480-3Y-1

SP200
200kA per Phase: L-L 100kA, L-N 100kA, L-G 100kA, N-G 100kA


  • SP200-120/240-SP,  SP200-120/240-SP-1

  • SP200-120/208-3Y,  SP200-120/208-3Y-1

  • SP200-277/480-3Y,  SP200-277/480-3Y-1

  • SP200-480-3D,  SP200-480-3D-1

LEA INTERNATIONAL LS PLUS

Modular Surge Protection Device

The LS Plus is a compact modular surge protection device. This unit is listed UL 1449 4th Edition using thermal protection to maintain performance ratings. The LS Plus is designed to be installed quickly and serviced easily to eliminate downtime. A robust surge capacity up to 300kA and fully loaded diagnostics package make this a versatile SPD for any application.

Features
  • Alarm with Disable Swtich - audible indication

  • Surge Counter - counts transients the unit suppresses

  • External Indication Lights - shows loss of power and protection integrity

  • Suppression Indicator - monitoring to identify damaged unit for easy servicing

  • Dry Contacts - Form C contacts for remote monitoring (NO & NC)

  • Linear Sharing - reduces stress to extend product life

  • Compact Enclosure - supports installation requirements when space is an issue

  • Thermally Protected MOV - allows maximum surge capacity, repetitive capability, and performance while maintaining safety requirements

  • Modular - field serviceable unit

  • All Mode Protection - L-N, L-G, N-G & L-L

  • 10 year warranty

Options

Thru-door rotary disconnect switch for easy servicing. Reference (-D) on part number.

Models

LSP100

L-L 50 kA, L-N 50 kA, L-G 50 kA, N-G 50 kA


  • LSP100-120/240-SP

  • LSP100-120/208-3Y

  • LSP100-277/480-3Y

LSP200

L-L 100 kA, L-N 100 kA, L-G 100 kA, N-G 100 kA


  • LSP200-120/240-SP

  • LSP200-120/208-3Y

  • LSP200-277/480-3Y

LSP300

L-L 150 kA, L-N 150 kA, L-G 150 kA, N-G 150 kA

  • LSP300-120/240-SP

  • LSP300-120/208-3Y

  • LSP300-277/480-3Y

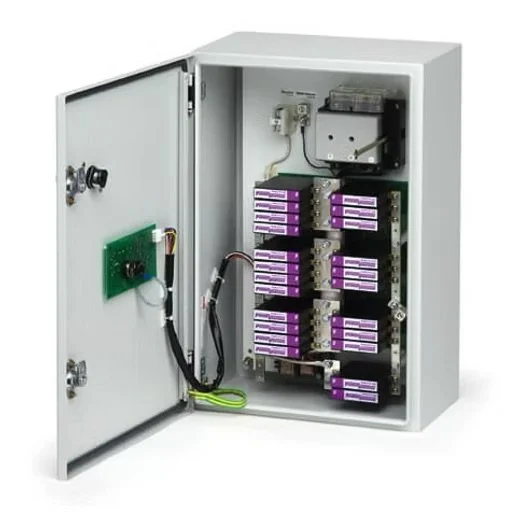

LEA INTERNATIONAL PV PLUS

PV Plus Modular SPD for Service Entrance Locations.



The PowerVantage™ PV Plus is a per mode modular surge suppression unit with all modes of protection listed to UL 1449 3rd Edition and designed with robust surge capacity for long life. The PV Plus is engineered for easy installation and serviceability to eliminate downtime and protect your critical equipment.

Features
Models
  • Alarm with Disable Switch - audible indication

  • Surge Counter - counts transients the unit suppresses

  • External Indication Lights - shows loss of power and protection integrity

  • Internal Protection Indicator Lights of Modules - redundant monitoring to identify damaged modules for easy servicing

  • Dry Contacts - Form C contacts for remote monitoring

  • Linear Sharing - reduces stress to extend product life

  • Thermally Protected MOV - allows maximum surge capacity, repetitive capability, and performance while maintaining safety requirements

  • Modular per mode - serviceable modules per mode

  • All Mode Protection - L-N, L-G, N-G & L-L

  • Independent Testing - tested to a single impulse surge of 200kA and repetitive testing of 15,000 times

  • 10 year warranty

PV200
200kA per Phase: L-L 100kA, L-N 100kA, L-G 100kA, N-G 100kA​

  • PV200-120/240-SP

  • PV200-120/208-3Y

  • PV200-277/480-3Y

  • PV200-480-3D

PV400
400kA per Phase: L-L 200kA, L-N 200kA, L-G 200kA, N-G 200kA


  • PV400-120/240-SP

  • PV400-120/208-3Y

  • PV400-277/480-3Y

  • PV400-480-3D

PV600
600kA per Phase: L-L 300kA, L-N 300kA, L-G 300kA, N-G 200kA

  • PV600-120/240-SP

  • PV600-120/208-3Y

  • PV600-277/480-3Y

  • PV600-480-3D
